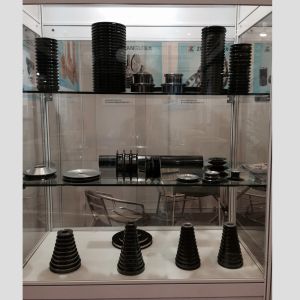

Spare parts for Fine wire drawing machine cones,pulleys,wheels,capstan,shafts,contact annealing band
We are the biggest manufactuter of spare parts for wire drawing machine,please go browse our producing process Video site:
1.https://youtu.be/aGsCWkt86co
2.https://youtu.be/jrLbq56Yg40
1:wire drawing in a single, compact
unit
2:ergonomic and user-friendly machine design,
with easy maintenance
3:left and right-hand versions for Non Ferrous
4:metal wires with the highest quality
5:requirements
6:single wire path with no crossover
effective single-wire drying
| machine type | 22DS | 24DS |
| inlet diameter(mm) | 0.8--1.2 | 0.5-1.0 |
| outlet diameter(mm) | 0.1--0.4 | 0.08-0.25 |
| drawing line speed(MPM) | 2500 | 2500 |
| drawing dies No./Max | 22 | 24 |
| slip ratio of m/c | 15% | 13% |
| fix speed capstan slip ratio | 8% | 8% |
| capstan | ceramic plasma | ceramic plasma |
| capstan dia.(max.)(mm) | φ242 | φ242 |
| fix speed capstan dia.(mm) | φ207 | φ207 |
| frame | ironed cast | ironed cast |
| main motor | 11KW three phase inductor motor | 11KW three phase inductor motor |
| spooler motor | 3.7KW three phase inductor motor | 3.7KW three phase inductor motor |
| revise system | Dual inverter control | |
| inverter control | Dual inverter control | |
| transmission type | flat belt | |
| payoff method | over head | |
| traversing unit | flat belt + timing motor | |
| tension control | weightbalance by swing arm | |
| lubrication system of wire drawing | spray | |
| suitable diameter of spool (mm) | φ300 | φ300 |
| capacity for wire receiving(kg) | 50-60 | 50-60 |
| bobbin loading & unloading type | shaft type | |
| power source | 380V/220/415/480 | |
| brake | pneumatic brake | |
| machine dimension | 2050L×1600W×1900H | 2050L×1600W×1900H |
| machine weight | 2000 | 2000 |
